A hermetic, universal and maneuverable tipping trailer

Specifications

Technical payload (t)

from 8 to 14

Axle(s)

Single axle
Double axle

Range

Dropside tipping trailers

769
DELTA-CAP General Points

General Points

The Delta-CAP combines all the advantages of dropside tipping trailers with the driving comfort and stability of monocoque trailers. The design of the chassis and drawbar is based on the Trans-CAP agricultural tipping trailers, with the important difference that they are fully galvanised. All Delta-CAP tipping trailers are fitted with a 3-way tipping system: rear, left and right sides, making this machine very versatile.

Specifications

560
DELTA-CAP Galvanised Chassis and Drawbar

Galvanised Chassis and Drawbar

In addition to the qualities of the steel and 2K paint used to guarantee an outstanding durability, the drawbar and chassis are hot-dip galvanised (in the JOSKIN Group's galvanising plant), which provides the best possible protection against corrosion. The zinc penetrates into the metal surface, making it immune to scratches and rust.

561
DELTA-CAP Sprung Drawbar, Movable Running Gear

Sprung Drawbar, Movable Running Gear

The drawbar is held in 5 places (at the tractor, at the 2 anchoring points under the chassis and at the 2 sides of the fork in the nose of the chassis) to improve steering and the traction line. The parabolic leaves placed between the drawbar and the chassis anchorage provide an exceptional comfort, for speeds of 40 km/h and beyond. The position of the leaves can be changed according to the tractor, thanks to the interface design and placement of holes in different heights. This change will allow a better transfer of the weight to the tractor, and therefore a better grip. The running gear is a Roll-Over bogie with an off-centre axis. It brings an upward pull line and guarantees an easy traction. It is bolted and can be moved in order to modify the load distribution.

562
DELTA-CAP Multifunctional Body

Multifunctional Body

The body offers many advantages: 3-way tipping system as standard, side panels that can be fully or partially removed according to your current needs, but also many possible combinations of side panels (50 cm, 60 cm or 80 cm) to achieve volumes up to 26 m³. By removing all the side panels, the body can be used as a bale trailer to transport round bales, square bales or pallets. It can also be equipped with perforated extensions for the transport of silage, hay or green waste. It is also possible to fit a rear grain auger, driven by a hydraulic motor. In short: the Delta-CAP is a real multipurpose trailer.

563
DELTA-CAP Sturdy and Watertight Body

Sturdy and Watertight Body

The body is standard manufactured in the same special high tensile steel as the one used to manufacture road transport vehicles. It is the best guarantee of sturdiness for a relatively low weight. In addition, its structure with closed profiled tubes increases the resistance to pressure of the walls and give a fluid and modern design to the machine. Another proof of the sturdiness of the body is its floor made of 4 mm thick high tensile steel, which provides an ideal strength without increasing the empty weight. The body is also equipped all around with high-strength synthetic rubber seals (industrial quality). This ensures a perfect tightness and prevents even the smallest seeds and free-flowing products, such as rapeseed, from leaking out. The side panels are locked with a large number of hooks that increase the contact between the side panel and the floor seal. Even for journeys on very bumpy roads, the body provides a perfect tightness.

564

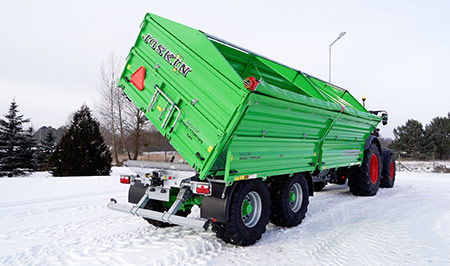

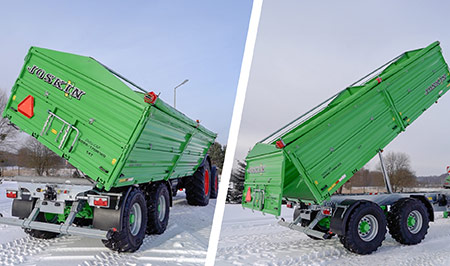

DELTA-CAP 3-Way Tipping System

3-Way Tipping System

In some places difficult to reach or in order to tip precisely, it is good to be able to use the side-tip function. This is for example the case if you have to tip in chutes or longitudinal pits, or when the height of the building in which you are unloading does not allow you to tip backwards. In this case, the "3-way" function, standard on all Delta-CAP, allows you to tip at the back as well as to the left or right side. The hydraulic tipping ram is fixed on an oscillating frame and the side tipping angle is automatically limited (limit cable). This makes, with a “train of tippers”, the 3-way tipping system an essential feature. All Delta-CAP tipping trailers are equipped as standard with all the necessary equipment to couple several tipping trailers one behind the other.
