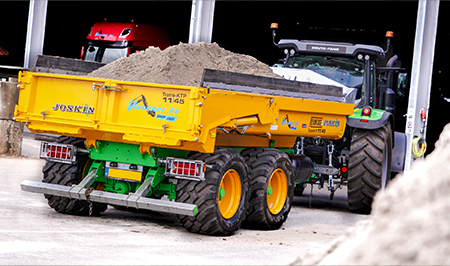

A tipping trailer to move mountains!

Specifications

Payload (t)

9 → 15

Axle(s)

Single axle
Double axle

Range

Construction Tipping Trailers

770
TRANS-KTP 9/11/15 General Points

General Points

The JOSKIN Trans-KTP 9, 11 and 15 T construction tipping trailers are the ‘‘low-capacity‘‘ models of the JOSKIN professional heavy duty range. Given their compact and sturdy design (side walls and floor in HARDOX 450 steel), they are an ideal solution for smaller excavation works, landscape gardening contractors or even public services.

Specifications

590
TRANS-KTP 9/11/15 Design/Chassis

Design/Chassis

The chassis of the JOSKIN Trans-KTP 9, 11 and 15 T tipping trailers is 900 mm wide and can therefore be fitted with wide wheels without exceeding a total width of 2.55 m. It is made up of 250 x 100 x 6 mm profile tubes on models 9/45 and 11/45, and of 300 x 100 x 8 mm profile tubes on model 15/45. The Trans-KTP 9, 11 and 15 T are fitted with an open drawbar that, given its structure, ensures a very good weight/resistance ratio. Furthermore, its wide fixing points (same width as the chassis) further improve the maneuverability. This solution offers a straight pull/push line and a large vertical clearance at the eyelet and thereby also absorbing shocks. Please note that the drawbar has a cross-suspension ensuring the driving comfort of the whole carriage. The “Y-shaped” drawbar provides a natural traction line and increases the stability of the tipping trailer. This Y shape requires less power, and is therefore more economical and ecological.

591
TRANS-KTP 9/11/15 Tapered, Light and Strong Body

Tapered, Light and Strong Body

The JOSKIN Trans-KTP tipper bodies are fully made of HARDOX 450 high tensile steel (4 mm on 9/45 and 11/45; 5 mm on 15/45) that has very interesting elastic characteristics. It returns to its original shape after deformation. Compared to traditional steel, the tensile limit is 5 times higher. All bodies are based on 2 steel sheets, without any linking cross-weld. Thanks to this manufacturing process, the empty weight of these tipping trailers is significantly lower and therefore allows to transport higher payloads, without compromising on sturdiness. The tapered shape of the body (8 cm wider at the back) makes sure the contents of the trailer flow out freely. This unmatched property is further reinforced by the successive folds aiming at smoothing off the edges of the body. The bodies are short (4.50 m) and compact, with a low height (50 cm on 9/45 and 11/45; 75 cm on 15/45) to ensure an easy loading, whatever the size of the loader. The bodies of the KTP 9 – 11 – 15 range are all fitted with a pre-equipment for loading ramps and a double rear door.

592
TRANS-KTP 9/11/15 2-Part Hydraulic Door

2-Part Hydraulic Door

The door can be opened manually by storing the 2 leaves on the sides (necessary to load a mini-excavator), or hydraulically by lifting the complete frame. With the hydraulic opening, the door has a large clearance for an easy unloading. With these 2 opening systems, there is always a solution adapted to your needs.

593
TRANS-KTP 9/11/15 Safe Tipping

Safe Tipping

The telescopic hydraulic tipping ram is assembled on a double oscillating frame fitted with greased bearings and integrated in the chassis in a forward position. This system compensates the torsions due to the tipping strains and effectively protects the hydraulic ram and the body from distortions. The advanced position of the hydraulic ram also makes it quicker and easier to tip heavy loads. The back- and and upward position of the tipping hinges increases the unloading height. The standard safety valve, which is directly placed on the hydraulic tipping ram, prevents the body from unexpectedly falling down (e.g. when a hydraulic hose breaks). The first two elements of the hydraulic tipping ram are as a standard chromed. This anti-rust protection allows the body of the tipping trailer to be left tilted backwards, especially during the resting time on a harvesting site, without the risk of rust pitting.

594
TRANS-KTP 9/11/15 Movable Running Gear

Movable Running Gear

All Trans-KTP 9-11-15 T tipping trailers are fitted with a movable bolted running gear. This feature is particularly interesting because it allows to modify the weight on the eyelet, and thus on the back side of the tractor, especially when changing the tyres or the drawbar height. The Trans-KTP 9/45 are single-axle tipping trailers with bolted axle brackets. The 11-15T tipping trailers are standard fitted with a Roll-Over bogie with bolted table (clearance up to 24 cm).
